Tanker

Tanker

STM-tax control computer tanker series

Share:

STM series of tax-controlled fuel dispensers are specially designed for all types of vehicles plus various gasoline diesel and light oil products. In the rubber paint industry it can be used for metering and transportation of various industrial gasoline and low viscosity non-corrosive liquids (temperature < 55 ° C viscosity <10mPa.s)
STM series of tax-controlled fuel dispensers include single pump single gun type double pump double gun type single pump double gun and 244 364 multi pump multi-gun type tanker. The whole series can be equipped with submersible pump tanker and IC card. It has an RS485 interface and can be connected to the background POS machine.

More
  • Basic configuration
  • Product characteristics
  • Product parameters
  • Component display
  • Video display
  • Data download

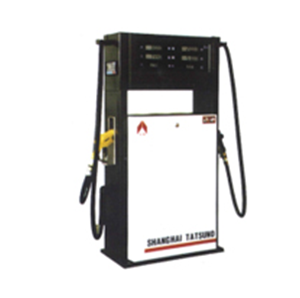

TW1A is a single pump and dual gun type tax control computer tanker:
Large liquid crystal display with yellow-green backlight stainless steel side plate self-sealing oil gun compact and simple appearance.
Dimensions / 800 × 425 × 1550 (mm) W1A (common type)
Accuracy ±0.3%
Work pressure 0.3Mpa
Flow range 5 to 50 liters/min (related to the situation of the submersible pump and the petrol station piping and the number of units used)
Explosion-proof motors 750W/380V;AC50Hz    /   750W/220V;AC50 Hz
Computer display Amount 6-digit display (0.00 to 9999.99 yuan)
The amount of fuel 6-digit display (0.00 to 9999.99 liters)
unit price 4-digit display (0.00 to 99.99 yuan / liter)
Computer accumulation 8-bit display (1 to 99999999 yuan or liter)
Ambient temperature -25℃~ 55℃
Data retention Can store seven years of tax data
Hose Internal diameter 19 mm oil resistant antistatic rubber tube
3660 mm 4500 mm 5180 mm 6000 mm
Machine explosion-proof mark ExmdeⅡAT3
Explosion-proof certificate number Tax control tanker: GYB05660
Manufacturing license number  Shanghai system 00000267
