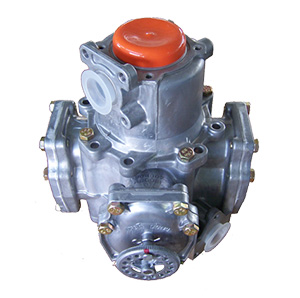

The Tatsuno FM-1007 series flowmeter is a special metering equipment installed in the fuel dispenser to help calculate the refueling. It is a volumetric liquid flow meter.
This product is trusted by our customers for its good precision and stability and widely used in middle & high-end fuel dispensers.

More
  • Basic configuration
  • Product characteristics
  • Product parameters
  • Component display
  • Video display
  • Data download

                                                                                                                                                                                                                                                                                                                                                                                                                                       High accuracy and beautiful shape;
Stable measurement tolerance within the entire flow range (5 to 50 L/min);
Long service life for a continuous output of about 15 million liters. It has passed the test of the bureau of quality and technology supervision;
Measurement accuracy can be adjusted with an rotating wheel in order to get efficient performance;

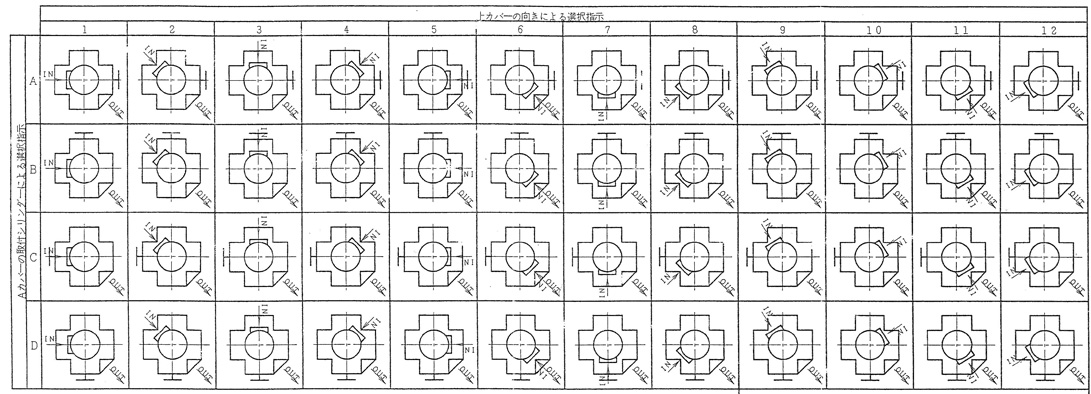

Split design: up to 48 options for direction combinations of the inlet and outlet which makes it convenient for flexible assembly;
Liquid Viscosity Range 0.5~100mPa•s
Fuel Type  #0 diesel #90 #93 #97 gasoline
Accuracy ±0.2%
Pressure Loss No more than 0.02Pa at a flow rate of 50L/min
Working Temperature -25℃ ~ 55℃
Working Pressure Not more than 0.3MPa
Adjustment Device Minimum adjustment range 0.04%
Metering Output Mechanical type: 0.5L/rev; electronic type: 0.01L/P
